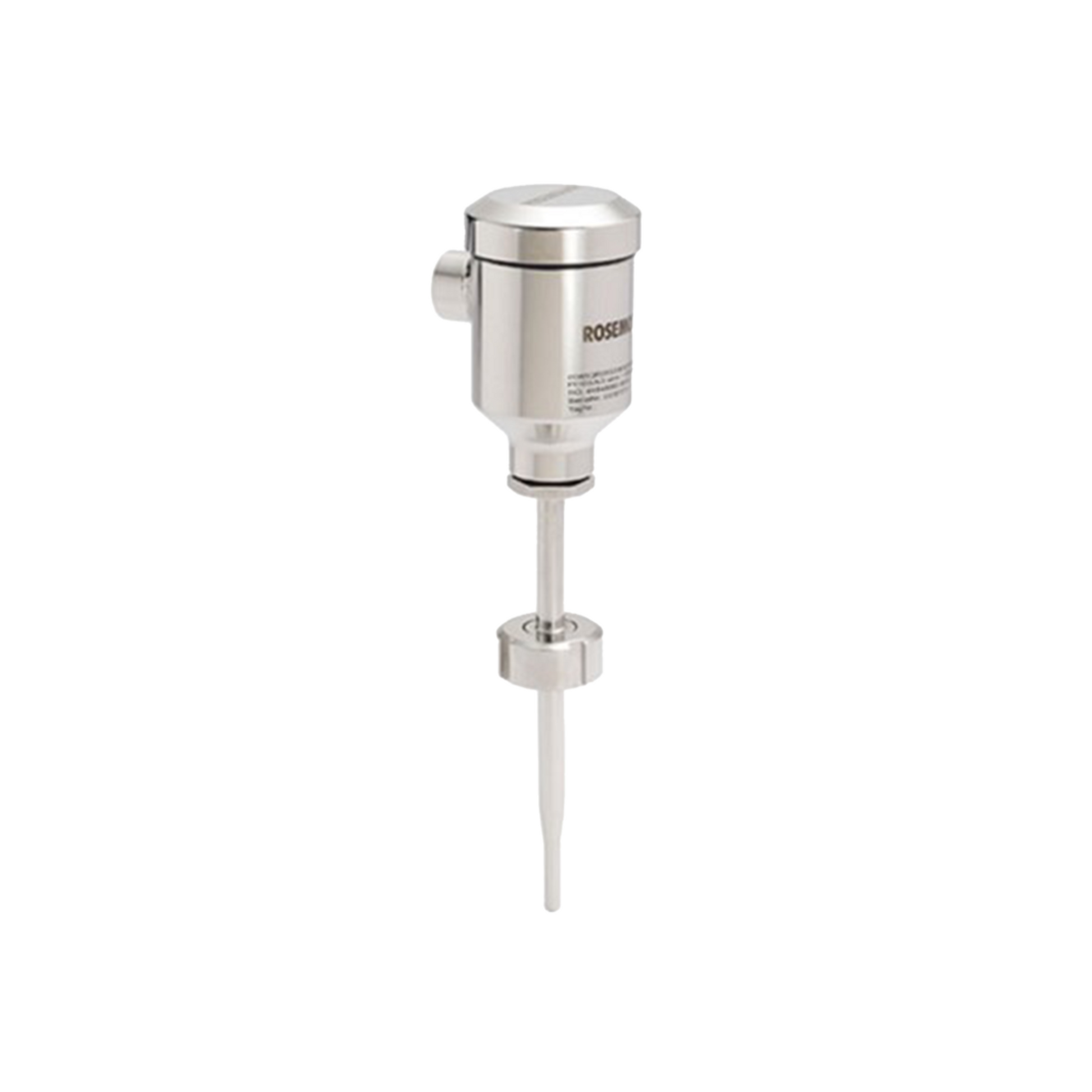

EMERSON Rosemount 65Q RTD Sensor with Twell for Sanitary Applications 0065QC01S0130D0150C04

Manufacturer : Rosemount

Product No : 0065QC01S0130D0150C04

Product type : 65Q RTD Sensor with Twell for Sanitary Applications

Connection head : C = Rosemount Aluminum, 68 IP rating, M20 x 1.5 connection thread.

Sensor lead wire termination : 0 = Flying Leads – No Springs on DIN plate

Sensor type : 1 = RTD, Single Element, 4-wire, – 50 to 450 °C temperature range

Extension : S = Tubular with Extension, Welded Screw Bush M24 x 1.5

Extension length (N) in millimeters : 0130 = 130 mm

Thermowell material : D = 1.4404 (AISI 316L) Stainless Steel, = 0.8 µm electropolishing

Immersion length (L) in millimeters : 0150 = 150 mm

Thermowell mounting style : C04 = Flanged, 11 /2-in. Tri-Clamp (diameter 50.4 mm), Stepped, 10/6 mm
