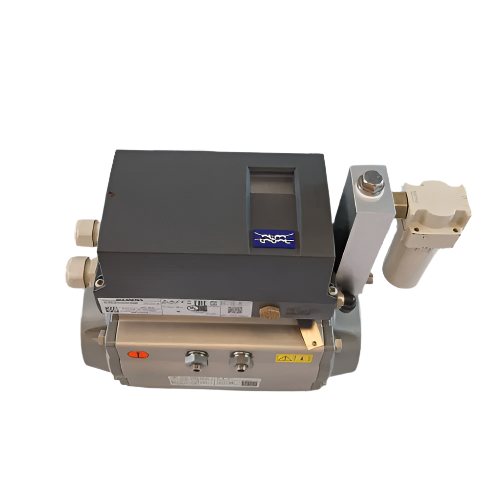

Air Torque DR00150U AL Pneumatic Actuator W/ 6DR5020-0NG30-0AB0/ AF20-F02C-2-A

Air Torque DR00150U AL Pneumatic Actuator W/ 6DR5020-0NG30-0AB0/ AF20-F02C-2-A
Air Torque
Alfa Laval
Siemens Ag
Smc
Typ Und Modell/Type And Model: Dr00150U Al
En Iso 5211: F07F10-y-h-17X22,2
Max. Zul. Druck/ Max. Allowed Pressure: 8 Bar
Drehmoment Bei/ Torque At: 5,5 Bar Max Nm 146
Betr.Temp: -40°C To +80°C
Zubehoranschluss/ Accessory Connection: Aa1
Luftanschluß/ Air Connection: G ¼”
Atex 2014/34/Eu:
Ii 2Gd C T95°C
T.F.: Atx09At
Iec 61508: Sil 3 – Capable
90° Rotation – Asst
Limit Switch
Sipart Ps2 I/P Positioner
6Dr5020-0Ng30-0Ab0
6Dr5020
Sw: 5.01.00
Iw=4…20Ma
Ip66/Type 4X
P= 1.4…7 Bar
Ta= -30°C…+80°C
Kcc-rem-s49
Imax=100Ma
Umax=35Vdc
E344532
Cnt. 11
Ip201-7
Af20-f02C-2-a
Max.Press: 1.0Mpa
4A2-6Jf
Max.Temp: 60°C
G Wy
Spare Part: C73451-a430-d81
1P C73451-a430-b33
Ps10121-a-aq
S 02Aq-121920209
Umax 250V~ 24V
I Max 4A~ 4A
Made In Italy
Made In France
Made In China
Weight: 7.500 Kg
