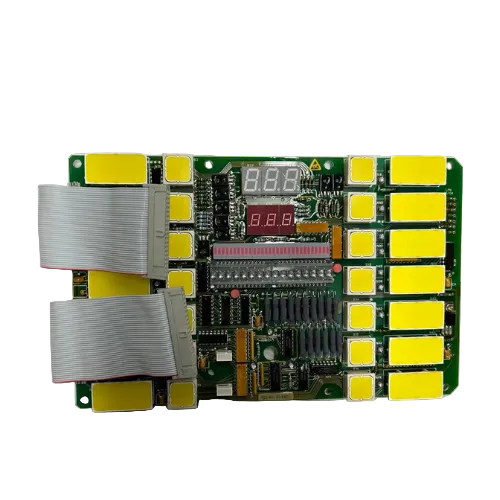

ANSCHÜTZ 102-841-03 E00 Marine Autopilot Display Unit

The ANSCHÜTZ 102-841-03 E00 is a core display and control unit engineered for marine autopilot systems, specifically designed for commercial and naval vessels. It features dual digital LED displays for real-time visualization of critical navigational data (e.g., course heading, rudder angle, system status codes) and a matrix of backlit function keys for intuitive operation and parameter configuration. Equipped with ribbon cable interfaces for seamless communication with the autopilot’s main control processor and sensor modules, the unit processes and presents navigation data with high precision. Built to withstand the harsh marine environment, it incorporates ruggedized circuit design, anti-vibration components, and EMC shielding, ensuring reliable performance under extreme conditions such as high humidity, salt spray, and electromagnetic interference. This unit serves as the primary human-machine interface (HMI), enabling bridge officers to monitor system status, adjust course settings, and execute autopilot functions efficiently.
