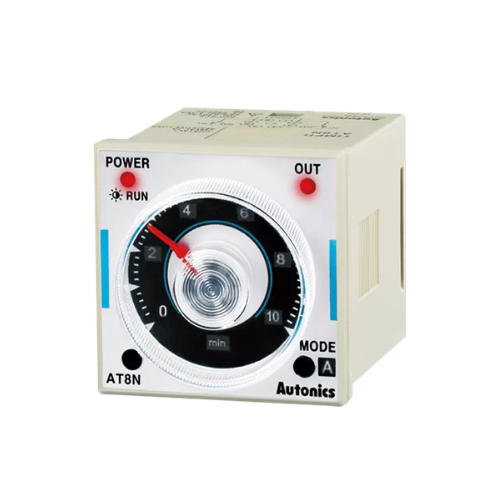

AUTONICS TIMER AT8N
AUTONICS TIMER AT8N
| Operation method | Time setting |
|---|---|
| Output Operation | POWER ON DELAY, FLICKER, INTERVAL |
| Time operation | POWER ON START |
| Terminal | 8-pin plug |
| Power voltage | 100-240VAC~, 24-240VDC
|
| Setting range | 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to 10 sec, 0.05 to 0.5 min, 0.1 to 1 min, 0.5 to 5 min, 1 to 10 min, 0.05 to 0.5 hour, 0.1 to 1 hour, 0.5 to 5 hour, 1 to 10 hour, 5 to 50 hour, 10 to 100 hour |
| Control output | Time limit DPDT (2c), Time limit SPDT (1c) + Instantaneous SPDT (1c) |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55 ℃, storage: -25 to 65 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation) |
| Unit weight (packaged weight) | ≈ 86.71 g (≈ 134.12 g) |
