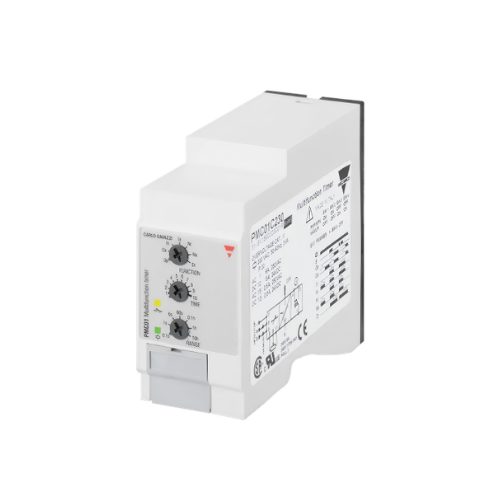

Multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h. Remote time setting available. 15 VDC, 10 mA (1 relay) or 24 VDC, 15 mA (2 relays) supply for PNP/NPN sensors and 8.2 VDC supply for Namur sensor. For mounting on DIN-rail (DMC01) or Plug-in (PMC01).
• Time range 0.1 s to 100 h • 7 knob selectable functions Op - Delay on operate, manual start Oa - Delay on operate, automatic and manual start In - Interval, manual start Ia - Interval, automatic and manual start Nr - Interval with no time reset, manual start Na - Interval with no time reset, automatic and manual start Dr - Delay on release • Knob selection of time range • Knob adjustable time setting • External adjustable time setting available • Repeatability: ≤ 0.2% • DC supply for PNP/NPN and Namur sensors • Output: 8 A SPDT or 2 x 8 A SPDT relay • For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in • 22.5 mm or 45 mm Euronorm or 36 mm Plug-in module housing • LED indication for relay status and power supply ON
