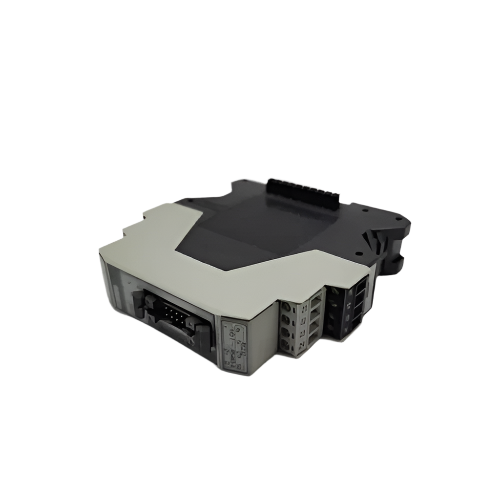

Consilium Buscon M 10 Module 5100055-A01

CONSILIUM

BUSCON M 10

5100055-A01

BUSCON M 10 HAS TWO MAJOR FUNCTIONS:

• TERMINAL BOARD FOR FUNCTIONS IN CONTROL PANEL M4.3 AND CONTROL/REPEATER M4.3

• TERMINAL BOARD FOR BACKBONE BUS EXTERNAL BBE (RS485 REPEATER)

THESE FUNCTIONS CAN BE USED TOGETHER OR INDIVIDUALLY.

THE MODULE BUSCON M 10 HAS ONE CONNECTION FOR EITHER RS232 OR RS485 COMMUNICATION.

FOR DETAILS ON ASSEMBLING A SYSTEM AND DEFINITIONS OF COMMON SYSTEM TERMS, REFER TO THE INSTALLATION MANUAL.

DATA:

• OPERATING VOLTAGE RANGE 19-30 VDC

• CURRENT CONSUMPTION (AT 24V) 3 MA

• CABLE TERMINALS 2.5 MM2

• OPERATING TEMPERATURE RANGE -5°C TO +55°C

• SPARE PART NO. (WITHOUT HOUSING) 5100055-A01
