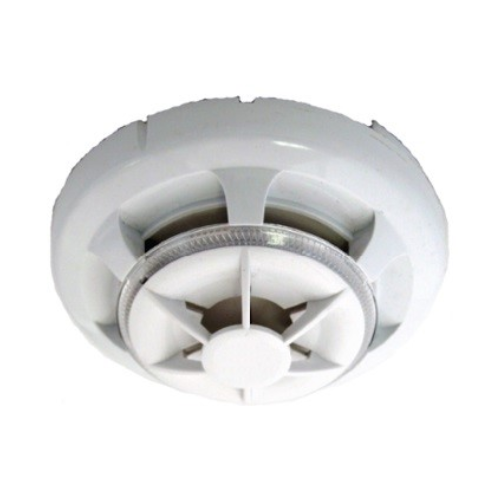

Consilium EV-H/A1R 54C HEAT DETECTOR 040000

The Salwico EV-H-A1R(040000) is an analoque addressable heat detector for use with the Salwico CS3000,CS4000 and NSAC-1 Fire
Alarm System.
Salwico EV-H detector is designed to give early warning for the presence of heat in the supervised area, and is available in two
temperature classes: EV-H-A1R (fixed 54°C + rate of rise function according to EN54-5)and EV-H-CS (fixed 84°C), see EV-H-CS
040005 for the 84℃ version. The low profile combined with the 360°alarm indication makes the detector suitable for sites with high
architectural requirements.
EV-H-A1R detector has a fixed 54°C alarm temperature + rate of rise function according to EN54-5 and offers a high protection
against unwanted alarms. The low profile combined with the 360°alarm indication makes the detector suitable for sites with high
architectural requirements.
Designed to give early warning for the presence of heat in the supervised area.The EV-H-A1R 54°C detector address is set with a
special programming tool 5200123-00A.
Key features include:
.Low profile design
. Easy Maintenance
.Clear, full 360*visibility of the red alarm indication
.Range of detector bases available
.Output for remote indication
·EN54-5 classification
· Marine Approval
·Product Code:EV-H-A1R 54°C (040000)
