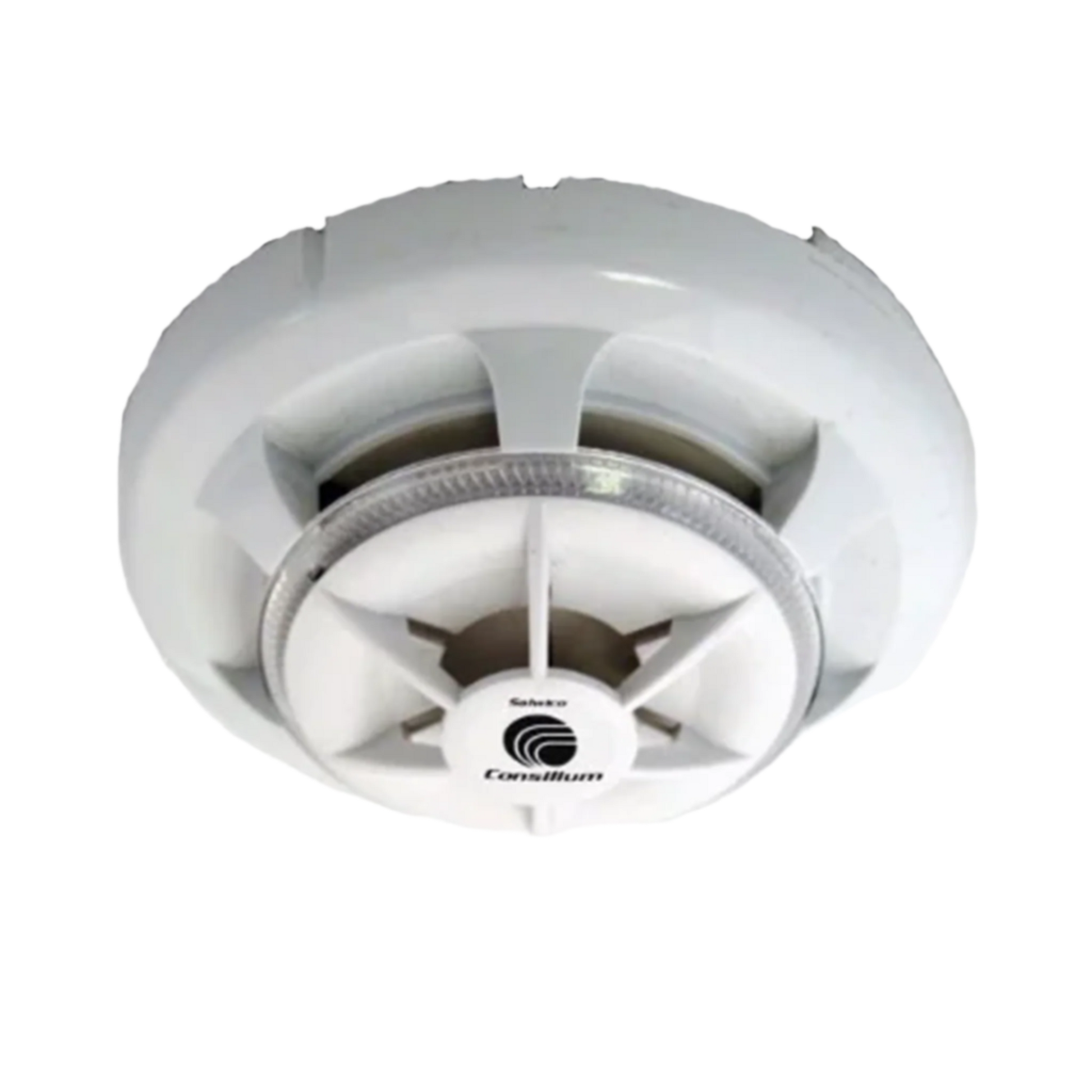

Consilium EV-H-CS 84°C Heat Detector 040005

Salwico EV-H-CS 84°C Heat Detector 040005

The Salwico EV-H-CS (040005) is an analogue addressable heat detector for use with the Salwico CS3000, CS4000 and NSAC-1

Fire Alarm System.

Salwico EV-H detector is designed to give early warning for the presence of heat in the supervised area, and is available in two temperature classes: EV-H-CS (fixed 84°C) and EV-H-A1R (fixed 54°C + rate of rise 0.8°C/min), see EV-H-A1R 040000 for 54°C version. The low profile combined with the 360° alarm indication makes the detector suitable for sites with high architectural requirements.

The EV-H-CS detector address is set with a special programming tool 5200123-00A.

The Salwico EV-H is equipped with an output for remote indication.
