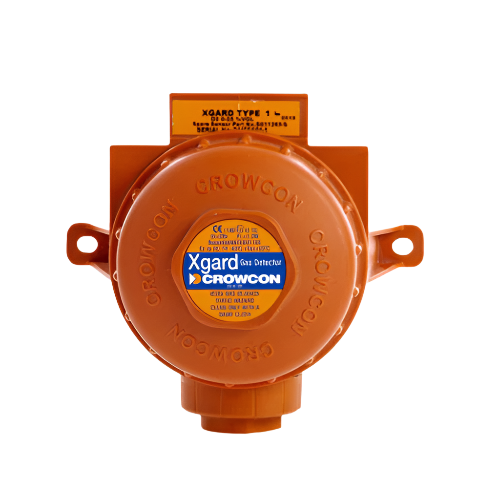

Crowcon Xgard (Type 1) Intrinsically Safe Toxic and Oxygen Detector

Crowcon Xgard (Type 1) Intrinsically Safe Toxic and Oxygen Detector

The Xgard range is a comprehensive selection of fixed point gas detectors that meet the diverse requirements for gas detection in industries throughout the world. This includes many water treatment, oil and gas, power, research facility and manufacturing installations. Intrinsically Safe (I.S.) or Flameproof (Exd) versions are available, with case options comprising high-grade alloy, stainless steel or chemically resistant GRN polymer. Certifications include IECEx, ATEX, UL, GOST-R and MED. Comes with ATEX as standard, contact us if you need otherwise.

Type 1 detectors are fixed-point Exia Intrinsically Safe toxic and oxygen gas detector using an electrochemical sensor within an Xgard enclosure, which also contains the amplifier/transmitter to provide a 2-wire 4 to 20mA output. Operating temperature -40 to +50°C (range varies for some sensor types). Type 1 Xgard detectors come in a glass-reinforced nylon material as standard.

Overview

Intrinsically Safe (I.S.) or Flameproof (Exd) versions are available, with case options comprising high-grade alloy, stainless steel or chemically resistant GRN polymer. Certifications include IECEx, ATEX, UL and GOST-R.

Low cost of ownership

• Designed for easy installation and maintenance – keeps costs down
• Three junction box options – designed to make replacement of sensors and sinters extremely simple. Spare sensors simply plug-in
• Many spare parts are common to all Xgard models – keeps spares holding requirements to a minimum

Flexible installation options

• Designed for either wall or ceiling mounting – no need for additional brackets
• Can accommodate M20, 1/2? NPT or 3/4? NPT cable glands – suits all site requirements
• High temperature models are available for hot environments (up to 150^oc)
• Accessories are available for duct mounting and sampling applications as well as remote gassing – simple sensor checking

Wide range of sensors

• Poison resistant pellistors, for all flammable detection needs including hydrocarbons, hydrogen, ammonia, jet fuel, leaded petrol and vapours containing halogens
• Electrochemical sensors are used to detect a vast range of toxic gases and oxygen
• Thermal conductivity sensors are available to monitor % volume concentrations of gases

Rugged and reliable

• Manufactured using a choice of three materials: glass reinforced nylon, highly durable aluminium with a tough polyester coating, or 316 stainless steel for ultimate corrosion resistance – designed to operate even in the harshest environments
• Spray deflectors and weatherproof caps are available for use in areas subject to regular wash-downs, or offshore environments
• All models have been validated to the functional safety standard IEC 61508 (SIL 1 to SIL 3)

Key Features

• Designed for easy installation and maintenance - keeps costs down
• Many spare parts are common to all Xgard models - keeps spares holding requirements to a minimum
• Designed for either wall or ceiling mounting - no need for additional brackets
• Can accommodate M20, 1/2" NPT or 3/4" NPT cable glands - suits all site requirements (all detectors are sold with 1 x M20 gland as standard, please Contact Us if you need otherwise)
• High temperature models are available for hot environments (up to 150^oc)
• Accessories are available for duct mounting and sampling applications as well as remote gassing - simple sensor checking
• Electrochemical sensors are used to detect a vast range of toxic gases and oxygen
• Manufactured using a choice of three materials: glass reinforced nylon, highly durable aluminium with a tough polyester coating, or 316 stainless steel for ultimate corrosion resistance - designed to operate even in the harshest environments
• Spray deflectors and weatherproof caps are available for use in areas subject to regular wash-downs, or offshore environments
• All models have been validated to the functional safety standard IEC 61508 (SIL 1 to SIL 3)
