DAIHATSU MEIYO THERMO COUPLE PTR-SD 700'C

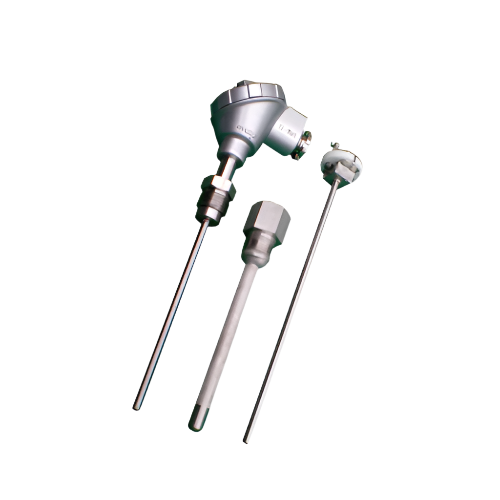

Description: THERMOCOUPLE MEIYO PTR-SD 700'C
Make: MEIYO ELECTRIC CO., LTD.
Type: PTR-SD
Temperature Range: 700°C
RESISTANCE BULB
PT 100 OHM B
Length: 300MM
Steam Dia: 15MM
Thread Diameter: 26MM

Outline
The platinum thermal resistance bulb is used to the measurement and monitoring for exhaust gas and steam temperatures of the main engine of a ship. This resistance element, provided as a unit by depositing platinum wires and internal conductors are to aluminum oxide bobbin, matches a thermocouple in mechanical strength. The platinum thermal resistance bule allows accuracy and stability even under such a strict environment as a continuous high working temperature of 700℃.

Features
・For Exhaust Gas of Diesel Engine
（With Terminal
・Rugged structural design to withstand engine vibration
