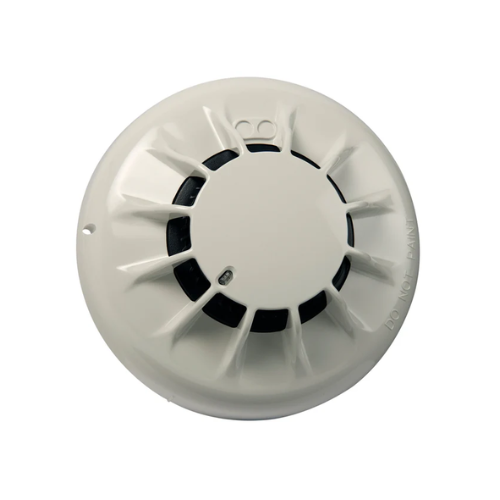

Tyco 516.900.103 711H Rate-of-Rise 60°C Detector – Marine

Tyco 516.900.103 711H Rate-of-Rise 60°C Detector – Marine

The 711H uses both rate-of-rise and fixed temperature sensing. The 711H is a category A1R heat detector. A1 denotes a static response temperature of 54°C to 65°C (EN54-5). The suffix R denotes a rate-of-rise characteristic, but the fixed element provides a backstop for fires where the temperature builds up gradually.

The 700 series detectors are for use in conventional two wire detection systems, where detectors are normally connected in zones. Each detector samples the ambient air every five seconds and if a fire condition is detected, a signalling current is drawn from the zone causing the Control and Indicating Equipment (fire alarm panel) to provide an alarm response for that zone.

Key Features

• Marine
• Use both rate-of-rise and fixed temperature sensing
• Category A1R heat detector
• Designed for use in conventional two wire detection systems
• Drop-in replacement for, and are backwards compatible with the legacy 600 Series
• Approved by major classification societies for use on vessels
• Superior performance, reliability and false alarm rejection
• Low operational voltage
• Compatible with 4B, 4B-D, 5B and 5B-D bases
• Approval to EN54, MED and IACS
• Ingress protection IP55 (installed with deck head mount)
