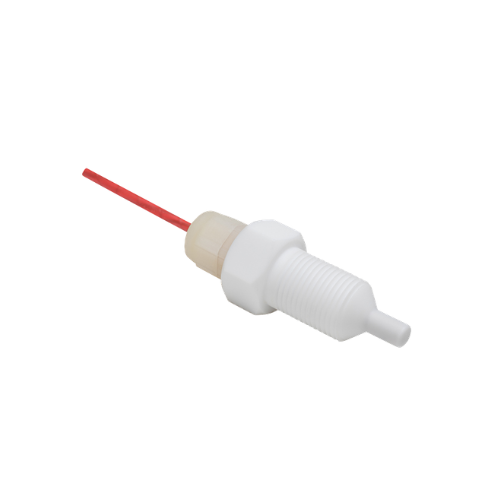

EGE FLOW SENSOR ST421 K-F

EGE FLOW SENSOR ST421 K-F

Make An Enquiry
TYPE ST 421 K-F
Product ID P10431
Medium water, oil
Detection range water 1 ... 70 cm/s
Detection range Oil 2 ... 100 cm/s
Process connection G1/2
Sensor length L 48 mm
Ambient temperature -10 ... 70 °C
Medium temperature -10 ... 70 °C
Temperature gradient fluids 1 K/min
Start-up time typ. 60 s (40 ... 100 s)
Reaction time typ. 30 s (10 ... 50 s)
Compressive strength 5 bar
Material sensor touched by medium PTFE
Material housing PTFE, PVDF
Protection [EN 60529] IP 68
Electrical connection 2 m FEP-cable 4x0.25 mm²
