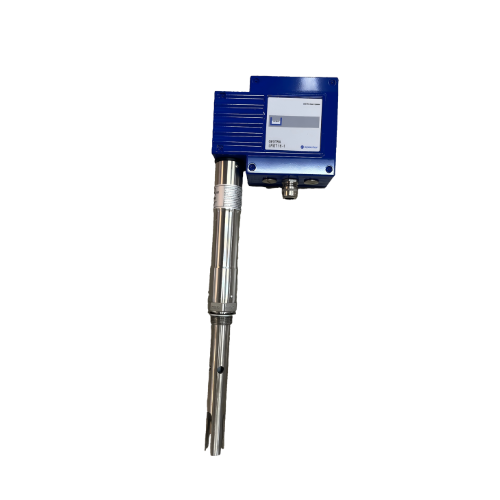

The compact-design conductivity transmitter LRGT 16-1, consists of a conductivity electrode, a temperature sensor for detecting the fluid temperature and a conductivity transmitting unit incorporated in the terminal box.
Output signal:
4 – 20 mA
Voltage:
24 V DC
Connection:
G 1“, DIN 228, PN 40
Measuring range:
adjustable 0,5 … 20 µS/cm to 0,5 … 12.000 µS/cm
Length:
200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 800 mm, 1000 mm, 1200 mm
Materials:
Body: Stainless steel X6CrNiMoTi 17-12-2 (1.4571)
Electrode rod insulation: PTFE
