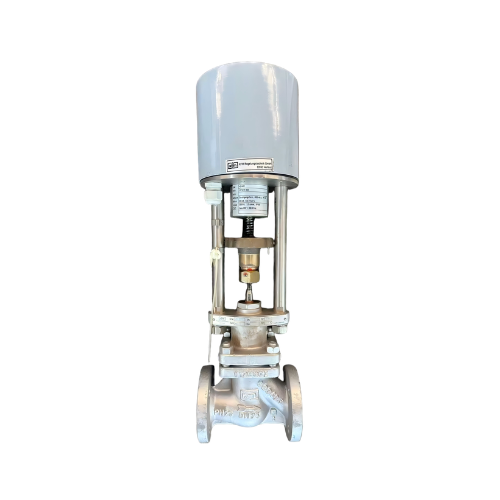

KFM Motor control valve 421402

Valve Operation Principle: Electric actuated globe type control valve

Size: DN 15-150

Pressure: PN 16, 25, 40

Material: Ductile Iron, Cast Steel

Temperature: Media temperature: up to 400°C

Leakage Class: Class IV

Connection: Flange, Butt weld by request

Available by Request: Bellows, Soft seat, Individual ANSI or DIN drillings

Actuator Options: 3 step control, I/O 4-20mA, 0-10V, Profibus DP, Profinet, Modbus, additional limit switches: Supply voltage: 24 / 115 / 230 / 400 VAC, 24 VDC
