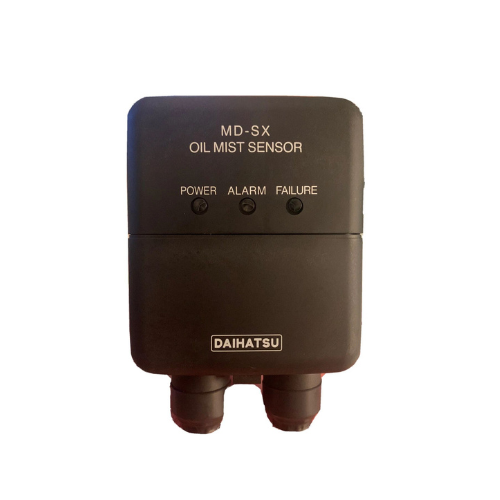

Sensor unit |
Controller
|
| Function |
Oil mist concentration & mist level output |
Mist level indication & alarm monitoring |
Detection point /
No. of sensor unit
|
1Point /1 Unit |
16 units (max.) |
Mist Detection /
Detection time
|
Suction type
Continuous
|
Response time≦1sec |
Detection system /
Concentration
|
Optical dispersion system |
0~1.2mg/l |
Display /
Operation
|
3 color LEDs
(Power, Alarm, Failure) |
- Mist level :3-color bar-graph indication
- LED:4 color LEDs (Run, Pre alarm, High alarm, Failure)
- LCD
- Key switch
|
| Contact output |
|
5 Points
(AC125V-0.4A / DC24V-2A)
(2×Pre alarm, 2×High alarm, Failure)
|
| Power supply |
Supply from controller |
DC24V (+30%~-25%) |
| Power consumption |
230mA(max.)/1 set
(Sensor unit 60 mA (max.) / 1 Unit) |
4.2 A (max.) (internal : 0.5 A) |
| Protection class |
IP 55 (Except a fan hood) |
IP55 |
| Weight |
About 2.3Kg (Sensor unit : about 500g) |
4.0Kg |
| Paint color |
Munsell N1.0 (Black) |
Munsell N1.0 (Black) |
