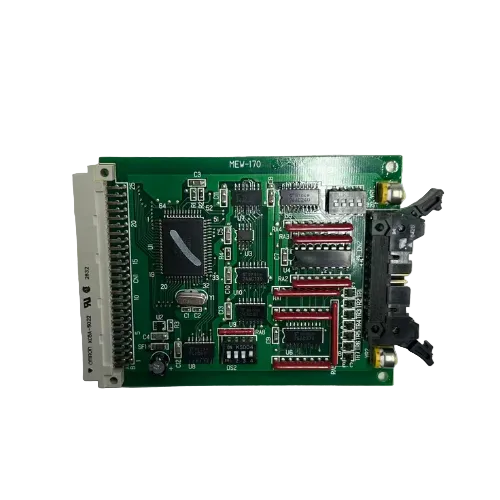

The MUSASINO OMRON MEW-170 is a specialized communication and data interface module designed for industrial and marine automation control systems. It integrates a dedicated logic chip (U1) and serial/parallel communication circuits to facilitate data exchange between the main control unit and peripheral devices or field networks. The module includes signal isolation, level conversion, and noise filtering circuits to ensure reliable data transmission in harsh environments. A 4-position DIP switch (DS2) allows flexible address or protocol configuration. It connects to the system via an OMRON 40-pin connector and interfaces with external devices through the right-side terminal block, supporting stable communication for system monitoring and control.
