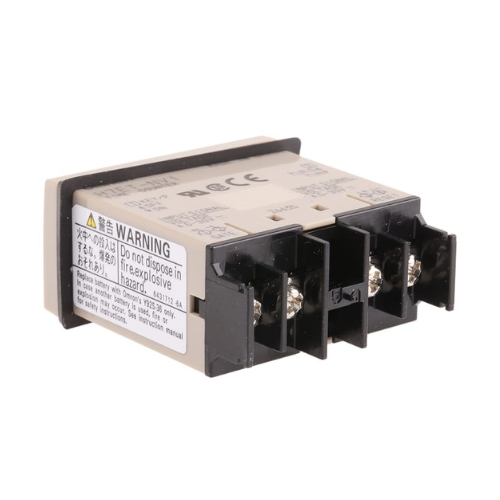

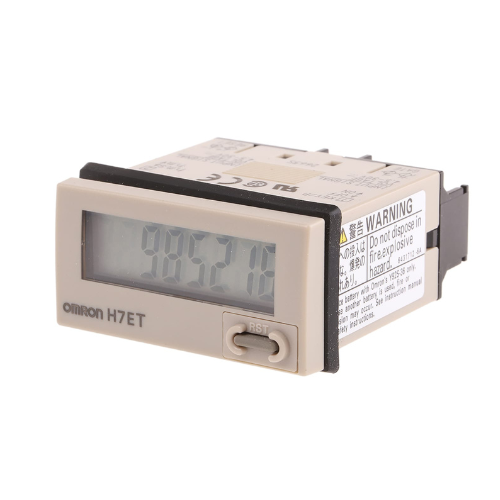

Omron H7Et

Electronic time switch for panel mounting, 24x48 mm, H7ET series

Totalizer with a large display with 8.6 mm character height and backlight options
Case available in black or beige
DIN case dimensions: 24x48 mm
Time switches with a 7-digit LCD display
Available with PNP/NPN, universal DC inputs
Self-powered by an internal battery for approximately 7 years of continuous operation, replaceable
Lockable switch to prevent accidental reset of the switch
Two operating modes
IP66 protection rating on the front panel
Short case measuring only 48.5 mm in length
Tamper protection
Complies with EMC EN50082-2 and EN50081-1 standards for commercial, residential, and light industrial use
Dimensions: Width 48 mm, Height 24 mm, Depth 48.5 mm, (opening 45x22.5 mm) mm)

Omron front panel mount 24 x 48

All devices are resettable. The panel cutout is 22 x 45 mm, and the front panel is sealed to IP65 protection and has an operating temperature range of -10 to +55°C.
