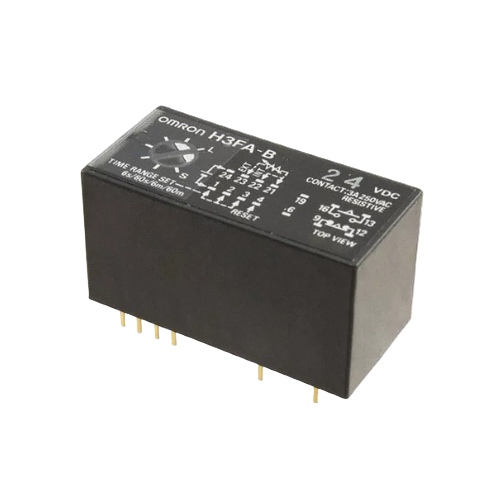

Omron relay time delay H3FA-B

Timer for mounting on contact and non-contact output type printed circuit boards.
Features
· Timer for mounting on contact and non-contact output type printed circuit boards.
· Two types of control outputs are provided: 3 A (at 250 V AC, with resistive load) for contact outputs (1a, 1b), and max. 150 mA at high capacity for non-contact outputs.
· Multifunctionality realized by 4 time types in one unit: 1 sec. / 10 sec. / 1 min. / 10 min. (type A) or 6 sec. / 60 sec. / 6 min. / 60 min. (type B).
· Time can be operated remotely through connection to an external varistor.
· Fully washable.
· Compact size enables mounting in 1-inch pitch racks (length × width × height: 17.75 × 36.9 × 19.5 mm).
· Complies with UL/CSA.
