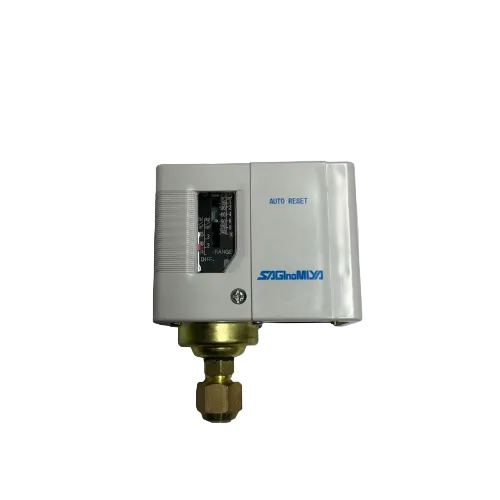

The SAGINOMIYA SNS-C110X is a single-pressure control switch with automatic reset, designed for refrigeration, air conditioning, and industrial systems. It monitors pressure within a range of 0 to 10 kgf/cm² (0 to 1 MPa), with a maximum allowable pressure of 15 kgf/cm² (1.5 MPa). The "AUTO RESET" feature automatically restores operation once pressure returns to the normal range, eliminating the need for manual intervention. Certified by major marine classification societies (NK, BV, NY), it protects compressors and systems from damage caused by overpressure or underpressure, ensuring stable and safe operation.
