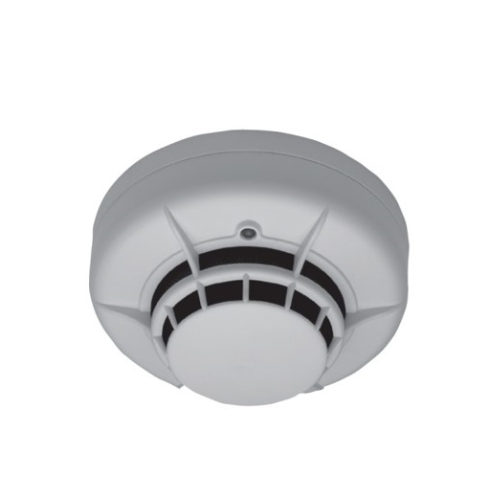

Consilium Salwico EC-H/BS 78°C Conventional Heat Detector 5200173-00A

Salwico EC-H/BS 78°C Conventional Heat Detector 5200173-00A

EC-H/BS 5200173-00A conventional heat detector developed for high temperature areas with rapid temperature changes, such as galleys. Fixed alarm temperature 78°C. EN54-5 classification BS + A1.

The Salwico EC-H/BS 78°C conventional heat detector 5200173-00A belongs to Salwico EC range of detectors for Salwico Cargo, ServoFighter fire alarm systems.

Salwico EC is a range of conventional detectors, which have been produced using the latest in manufacturing technology and supplied with an array of advanced features, making them ‘better by design’.

The Salwico EC-H/BS thermal detector uses a state of the art thermal element combined with an application specific integrated circuit (ASIC) to provide quick and accurate detection of fires.

EC-H/BS 5200173-00A detector incorporates a static element and is suitable where ambient conditions normally exhibit rapid changes in temperature e.g. galley. The EC-H/BS detector also has an integral LED, which illuminates to provide a local alarm signal. An optional remote LED annunciator may be used to repeat any alarm signal.

Detector Base Sold separately
EC-BASE Base (5200177-00A) IP22 base for dry spaces
EC-ADAPT IP55 (5200178-00A) and 46950 IP55 Base for wet spaces

Key features include:

Low profile design
Low current draw
Quick response and high accuracy
78°C Fixed alarm temperature
Operates at 12 and 24VDC
Remote alarm test feature
Easy Maintenance
Range of detector bases available
Remote LED Option
Approved to EN54 – 5:2000 Class BS
Marine Approval
Product Code: EC-H/BS 78°C (5200173-00A)
