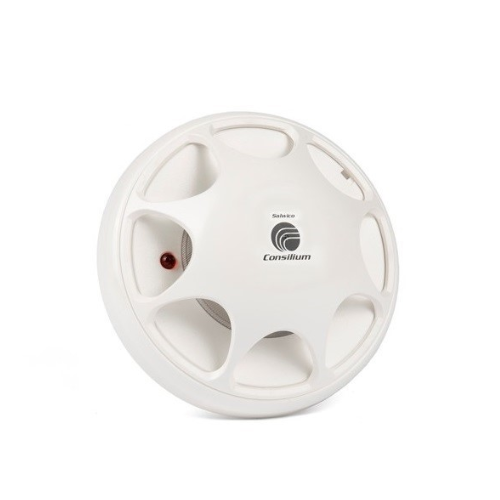

Consilium Salwico HC100A2-IS 57°C Intrinsically Safe Heat Detector 038010

Salwico HC100 Class A2 57°C Intrinsically Safe Conventional Heat Detector 038010

The Salwico HC100 A2-IS (038010) is an intrinsically safe conventional heat detector for use with all Salwico Fire Alarm Systems: C300, C308, C316, CS3000, CS3004, CS4000, NSAC-1.

HC100A2-IS detector has a fixed 57°C alarm temperature according to EN54-5 and offers a high protection against unwanted alarms. Alarms are optically indicated until they are reset on the central. The low profile and smooth design makes the detector suitable for sites with high architectural requirements.

Designed for use in areas with high explosion risk and connected via an intrinsically safe interface.

The Salwico HC100A2 is equipped with an output for remote indication.

Mounting base are sold separately, see SPB-BASE IP55 Base Adapter 5201044-00A.

Key features include:

Low profile design
Easy Maintenance
Range of detector bases available
Output for remote indication
A2, EN54-5:2000 classification
Developed for explosion hazardous areas
Ex II 1G Ex ia IIC T5 Ga -10 °C ≤ Ta ≤ +70 °C
Marine Approval
Product Code: HC100A2-IS 57°C (038010)
