Consilium Salwico IP-ADAPT SCI Base Adapter 5100776-00A

Salwico IP-ADAPT SCI Base Adapter 5100776-00A

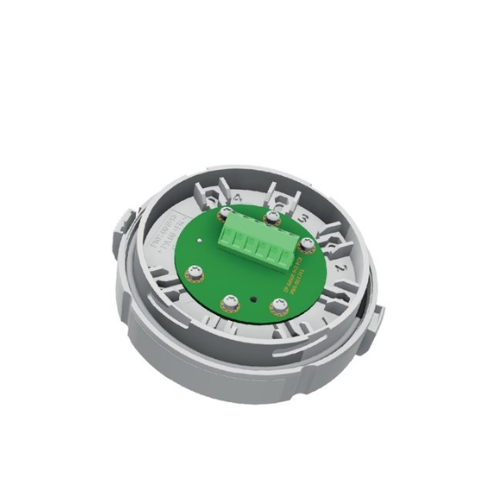

IP-ADAPT-SCI 5100776-00A is a Base Adapter providing short circuit protection that is to be used with IP-BASE 5100774-00A Detector Base.

The IP-ADAPT SCI provides short circuit protection in the IP-BASE detector base. The short circuit isolator function is fully transparent and does not require any settings.

A wide range of smoke, heat and flame detectors can be connected to the IP-ADAPT SCI 5100776-00A adapter. Both conventional and addressable systems and is suitable for all Salwico fire alarm systems.

The IP-ADAPT SCI 5100776-00A base adapter is attached to the detector base IP-BASE with a bayonet mount. Turn the adapter in a clockwise direction and make sure the snap lock connector snaps in place with a clicking sound.

The base adapter provides ingress protection to IP66/IP67 (mounted on a base) and is suitable for installation in a harsh environment.

Key features include:

Ingress protection IP66/IP67 (mounted on a base)
Installation in harsh environments
Quick and safe short circuit isolation
Small form factor
Product Code: IP-ADAPT SCI (5100776-00A)
