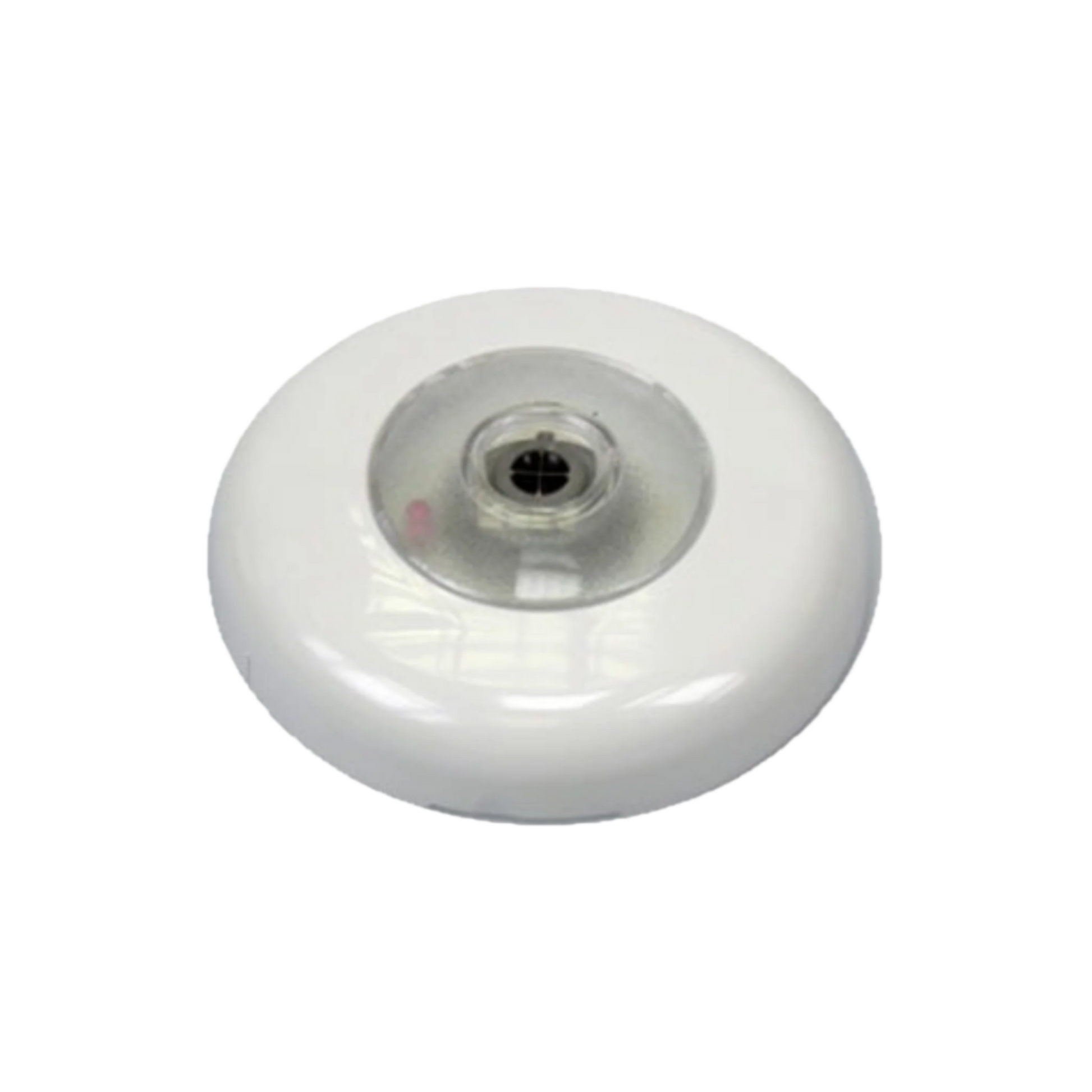

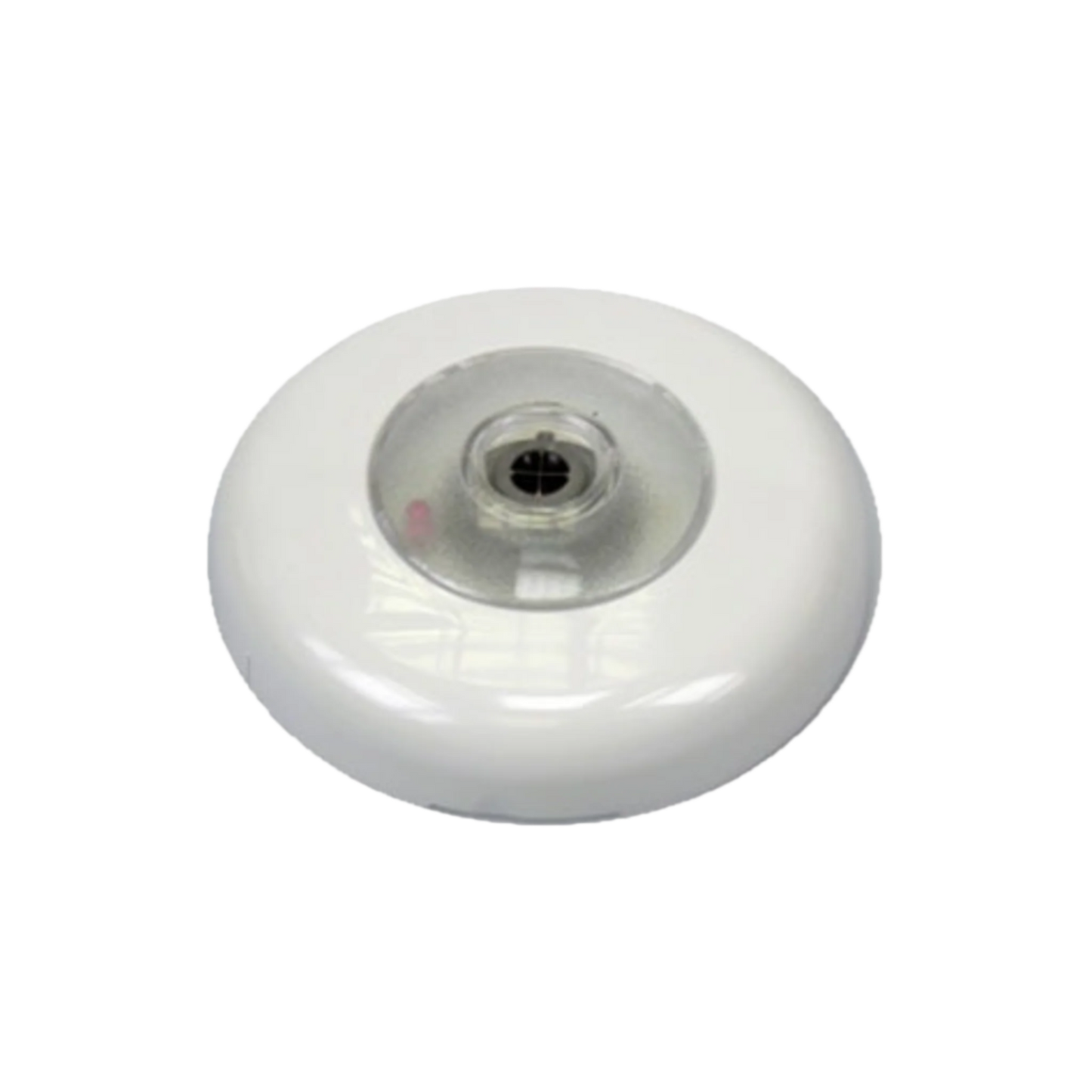

The 601F-M point type flame detectors forms part of the 600 series of conventional detectors. The 601F-M is a full featured solar blind flame detector for indoor use and boasts a high degree of false alarm immunity.
The 601F-M is designed for connection to a marine conventional zone of point type fire detectors that may include any mix of detection technologies.
Key Features:
Solar Blind for false alarm free operation
Fast response to flames
Detect a 0.1m² fire at a range of 20m
Automatic health check feature
Discrete ultra-low profile design
Fits a standard MZX detector base or functional base
Integral alarm LED with 360º angle of view
Use T110 infrared test source (With separate adapter)
